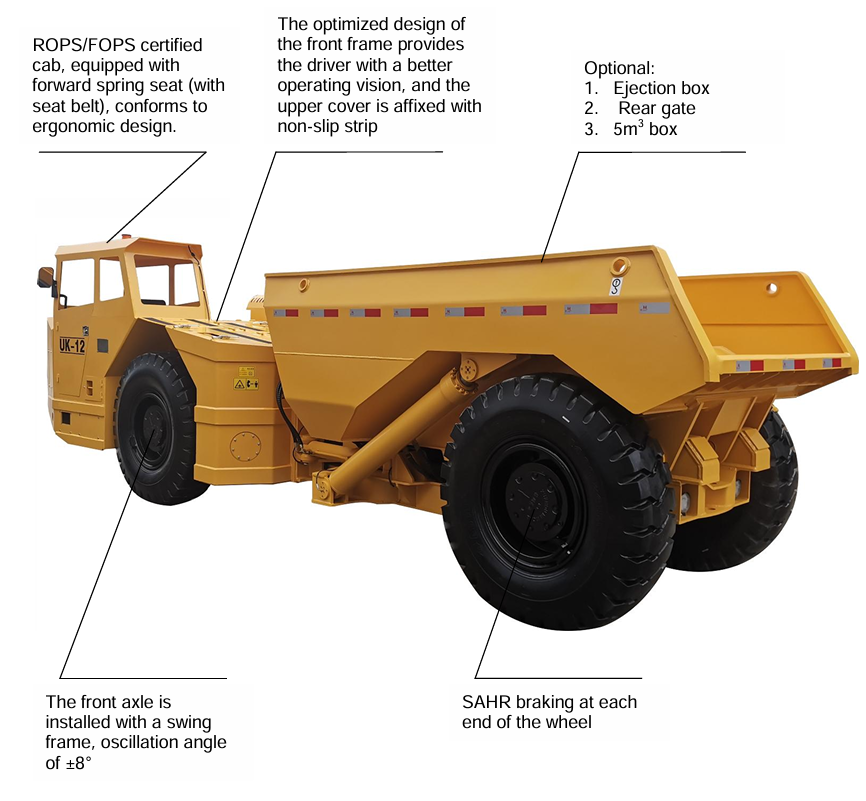

Uk-12 is an articulated underground truck with load capacity of 12 metric tonnes.It has been expertly designed for fast, efficient haulage in small-to-medium mining and construction operations. Uk-12 is built with safety and ease of operation in mind.
Industry standard
GB∕T 35195-2017 Technical standards for construction machinery and equipment
JB/T8436 Standard for tire-type ore trucks for underground mines
GB21500 Safety requirements for trackless tire-type mine trucks for underground mines
Application
Environment Temperature：-25℃~+45℃
Mining Altitude：-1500m ~ +5000m
When working at -1500 ~ +3000 meter, temperature is no higher than 25℃, there is no engine power loss
Side View
Top View
-
Technical Specification
Capacities Main dimensions Tramming capacity：12000 kg
Dump box volume：6m3
Max.Traction：143KN
Gradability 25%（14°）
Optional Box 5m3(10000kg)
Overall Size：7575*1900*2315mm
Box Lift Height：4240 mm
Wheelbase：4170 mm
Min. ground clearance：295 mm
Turning radius：4585/7135 mm
Turning angle：40°
Dump angle：60°
Approaching angle：16°Speed Dump Box Motion Time 1st Gear Speed：0~4.8km/h
2nd Gear Speed：0~9.8 km/h
3rd Gear Speed：0~17.2 km/h
4th Gear Speed：0~23.0 km/h
Discharging time： ≤13s
Box lowering time： ≤10s
Weight, empty Weight, Loaded Operation Weight：13500 kg
Front axle：9020 kg
Rear axle：4480 kg
Fully Loaded Weight：25500 kg
Front axle：11310 kg
Rear axle：14190 kg
-
